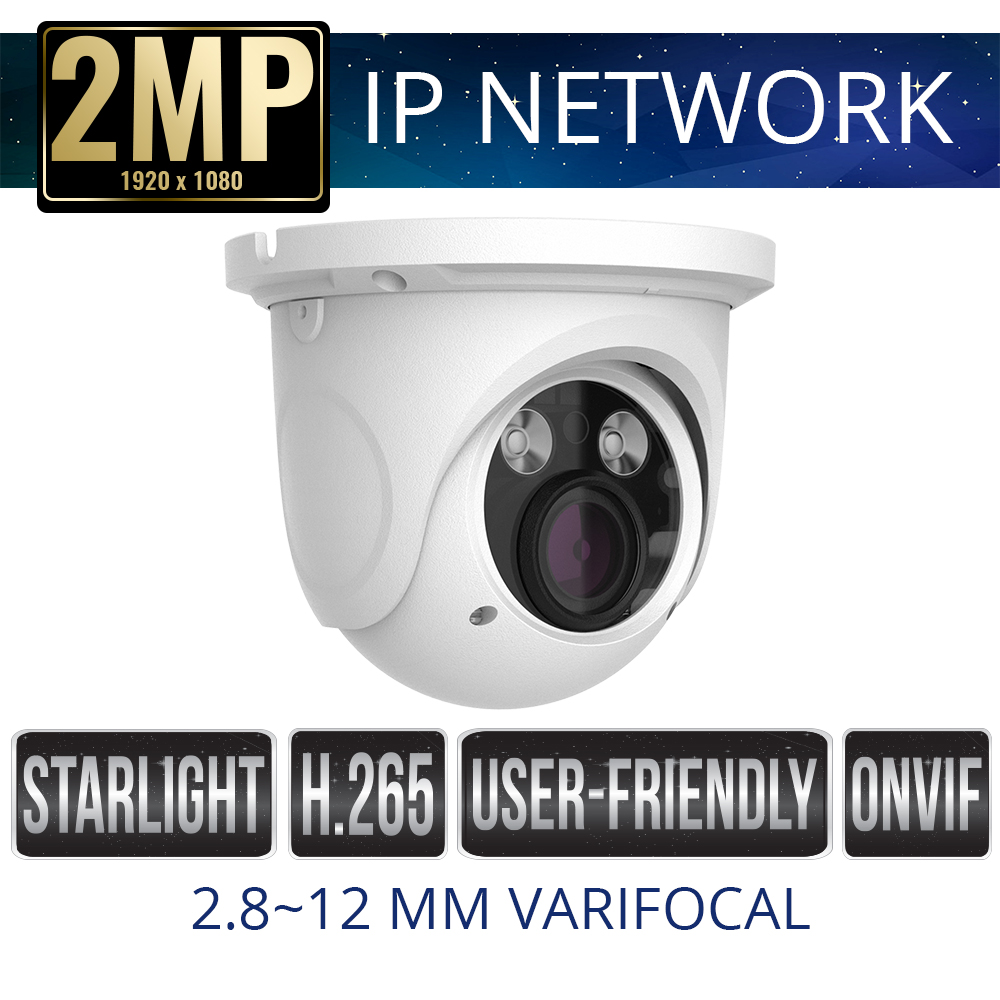

2mp IP Network Dome Camera Weatherproof with IR
Sibell IPOD-SBS2IRV 2mp IP dome Camera for video security provides 2 Mega-Pixel real-time resolutions at 30fps. This 2mp IP dome Camera provides a feature set including ICR auto switch, true day / night, 3D DNR, and Digital Wide Dynamic Range. The Lens is manual varifocal 2.8-12mm adjustable zoom. The Sibell IPOD-SBS2IRV is IP66 Rated weatherproof for indoor or outdoor use and all Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms. Sibell IP Cameras work seamlessly with Sibell Recorders.
Key Features:
- 2 Mega Pixel ( 1920 x 1080 )
- 2.8~12 mm vari-focal lens
- ICR auto switch, true day / night
- 65 ~ 98 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
Description
Model#: IPOD-SBS2IRV 2mp Varifocal Dome Camera |
|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 x 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Min. Illumination | Color : 0.002 lux @F1.2,AGC ON;
B / W : 0.0002 lux @F1.2,AGC ON |
| Lens | 2.8~12 mm @ F1.4-2.8, horizontal field of view :95.7° ~ 35.9° |
| Lens Mount | ɸ 14 |
| Day & Night | ICR |
| Wide Dynamic Range | digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan : 0°~360°, Tilt : 0°~90°, Rotation : 0°~360° |
| Image | |
| Video Compression | H.264 / MJPEG |
| H.264 Compression
Standard |
Baseline Profile / Main Profile / High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 x 240 |
| Main stream | 60Hz : 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps )
50Hz : 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit rate | 128Kbps ~ 6Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
Sharpen, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 65-98ft (20~30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 3W |
| IR Consumption ON | < 5W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ɸ 109 × 130 |
| Weight ( net ) | 687g |
Accessories
Compatible Camera Mounts Part Number: JB-SB-BR
Documents
Download “IPOD-SBS2IRV-specsheet”
