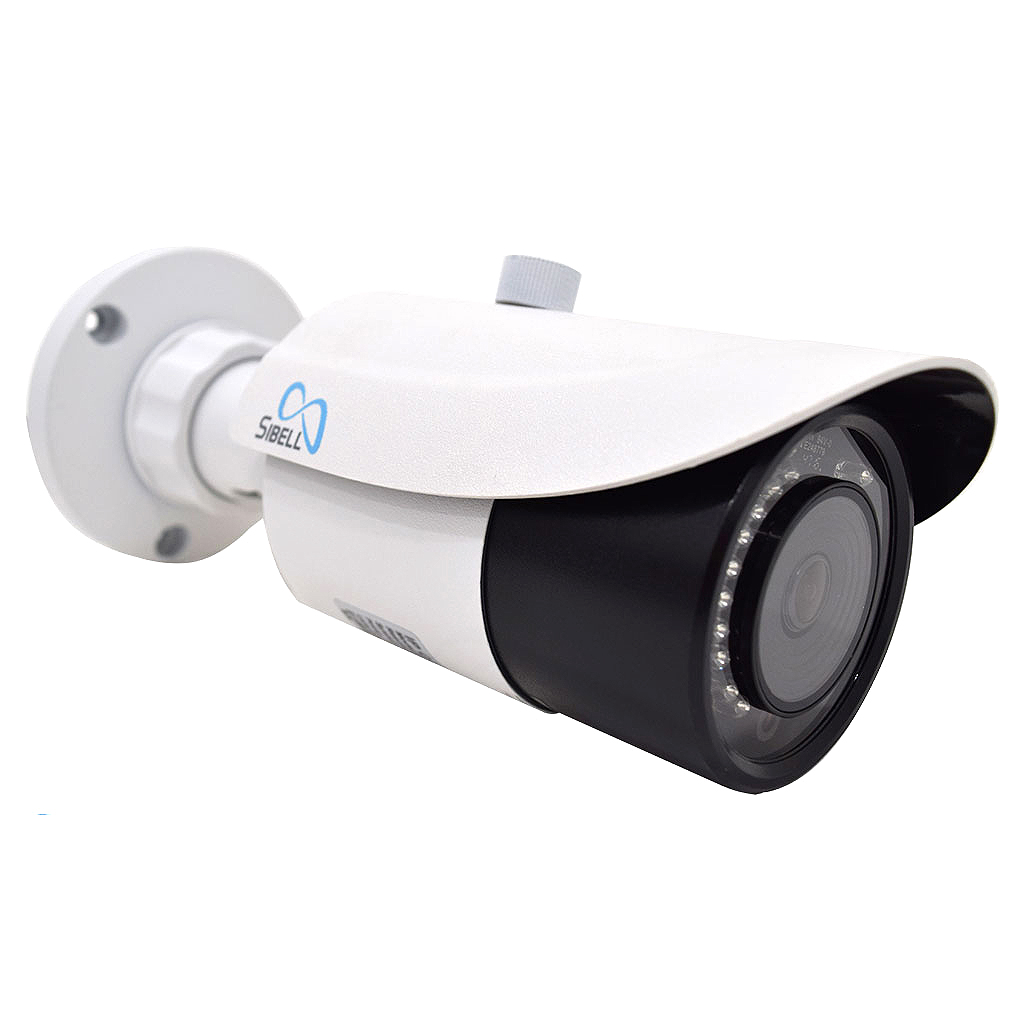

4mp IP Bullet Security Camera with 2.8mm Lens
Sibell’s IPOB-SB4IR28 4mp IP Bullet Security Camera with 2.8mm Lens for video security provides 4 Mega Pixel real-time resolutions at 30fps and uses ONVIF. The 2.8mm wide angled fixed lens gives great area coverage, combined with 4mp (2592 x 1520) resolution you are still able to see detailed views. This 4mp IP Bullet Security Camera with 2.8mm Lens as features to include 3D DNR, Physical Wide Dynamic Range (WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in lighting environment. The Night Vision IR distance is up to 65 – 98 Feet and the IPOB-SB4IR28 has easy plug and play PoE Power supply. This camera is also IP66 Rated to work in indoor and outdoor settings. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms and they run seamlessly with Sibell Recorders
Key Features:
- 4 Mega Pixel ( 2592 × 1520 )
- 2.8mm Wide Angle Lens
- H.265 Video coding
- ICR auto switch, true day/night
- 65 ~ 95 feet IR night view distance
- 3D DNR, Physical WDR
- Supports local CVBS video output and one-way audio
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
Model#: IPOB-SB4IR28 4mp IP Bullet Security Camera |
|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2688 × 1520 |
| Electronic Shutter | 1 / 25 s ~ 1 / 30%000 s |
| Auto Iris | Fixed Iris |
| Min. Illumination | 0.05 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm |
| Lens Mount | ɸ 14 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| BLC/ HLC/ Defogging | Yes |
| Digital NR | 2D/3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG Main Profile @Leve4.1 High Tier |
| Resolution | 4MP ( 2592×1520 ), 2K ( 2560×1440 ), 3MP ( 2304×1296 ),
1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240 |
| Main stream | 60Hz : 4MP( 1 ~ 30fps ) / 2K ( 1 ~ 30fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 50Hz : 4MP( 1 ~ 25fps ) / 2K( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 64 Kbps ~ 10 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,
Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Audio Compression | G711A / U |
| ROI | Each ROI to be configured separately |
| Interfaces | |

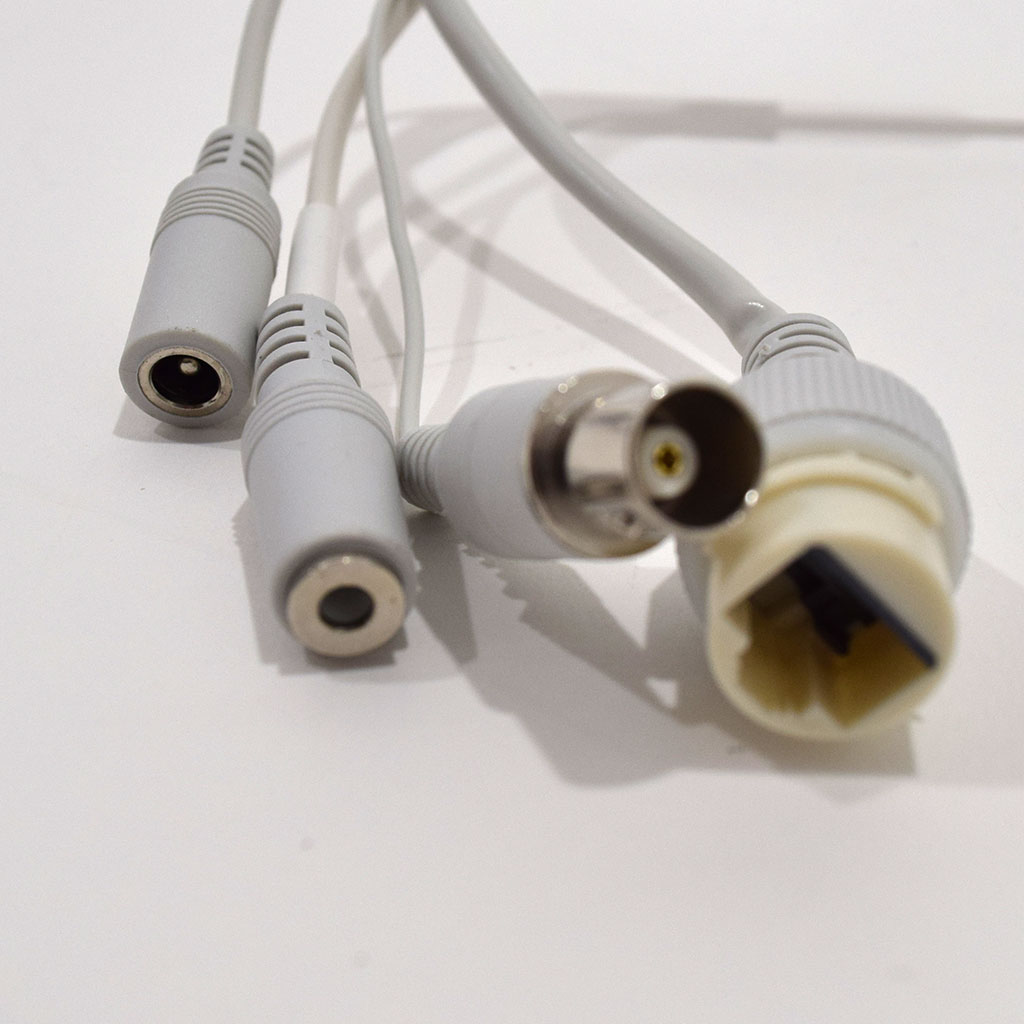

| Network | RJ45 |
| Audio | MIC IN × 1 |
| Video Output | CVBS video output ( BNC × 1 ) |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 65-98ft (20~30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2.5W |
| IR Consumption ON | < 6W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions | ɸ 3.5in × 9in ɸ 87 × 219 |
| Weight ( net ) | 609g (1.3lbs) |
| Installation | Wall mounting, pendent mounting |

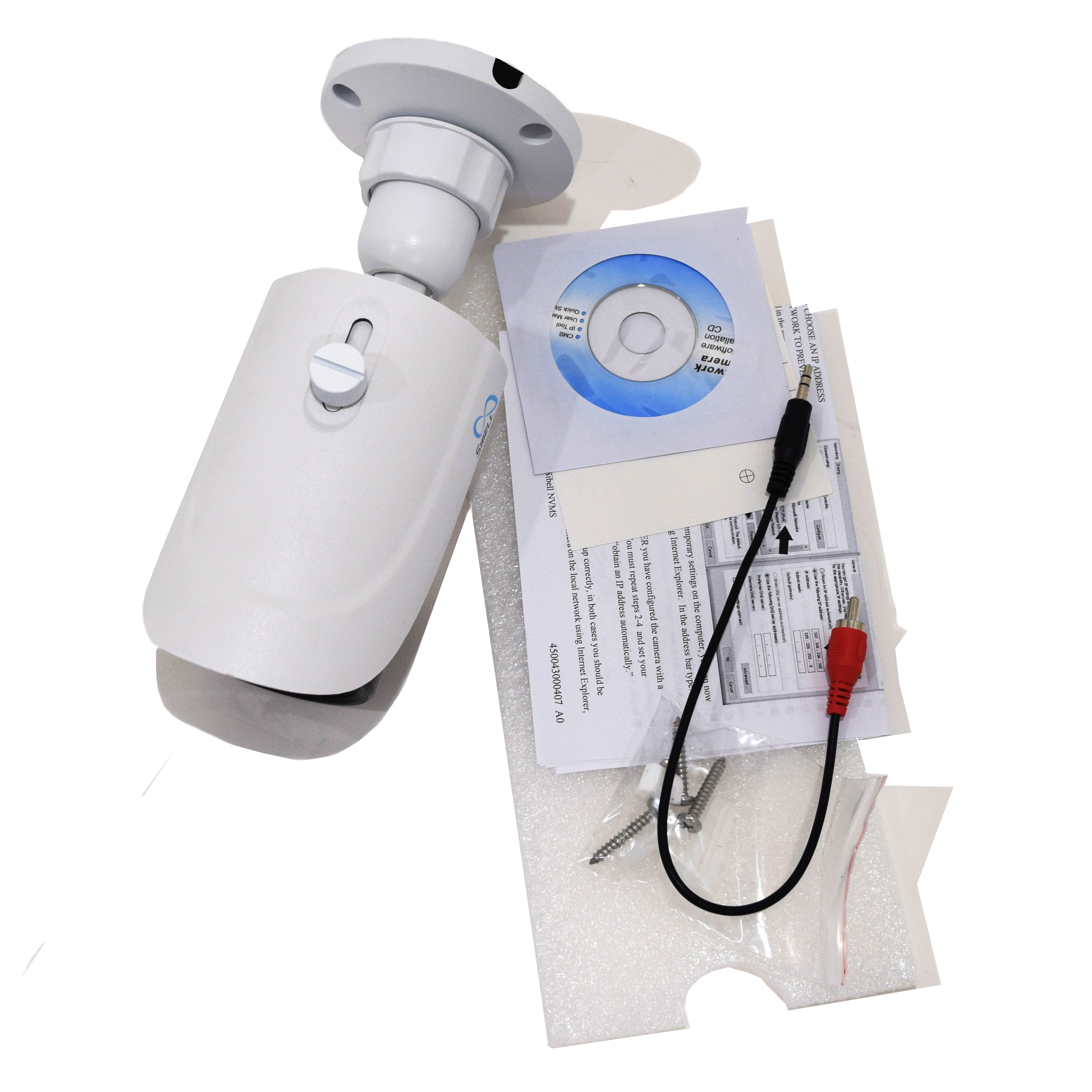

Accessories
Compatible Camera Mounts Part Number: JB-SB-BR
Documents
Download “IPOB-SB4IR28- Specsheet”
IPOB-SB4IR28-specsheet.pdf – Downloaded 398 times – 235.04 KBDownload “IPOB-SB4IR28- Quickstart Guide”
IPOB-SB4IR28-QSG.pdf – Downloaded 446 times – 876.27 KBDownload “Sibell 4MP Manual for fixed lens Eyeball/Bullet”
Sibell-4MP-manual-for-fixed-lens-eyeball-bullet.pdf – Downloaded 799 times – 2.06 MBYou must be logged in to post a review.
