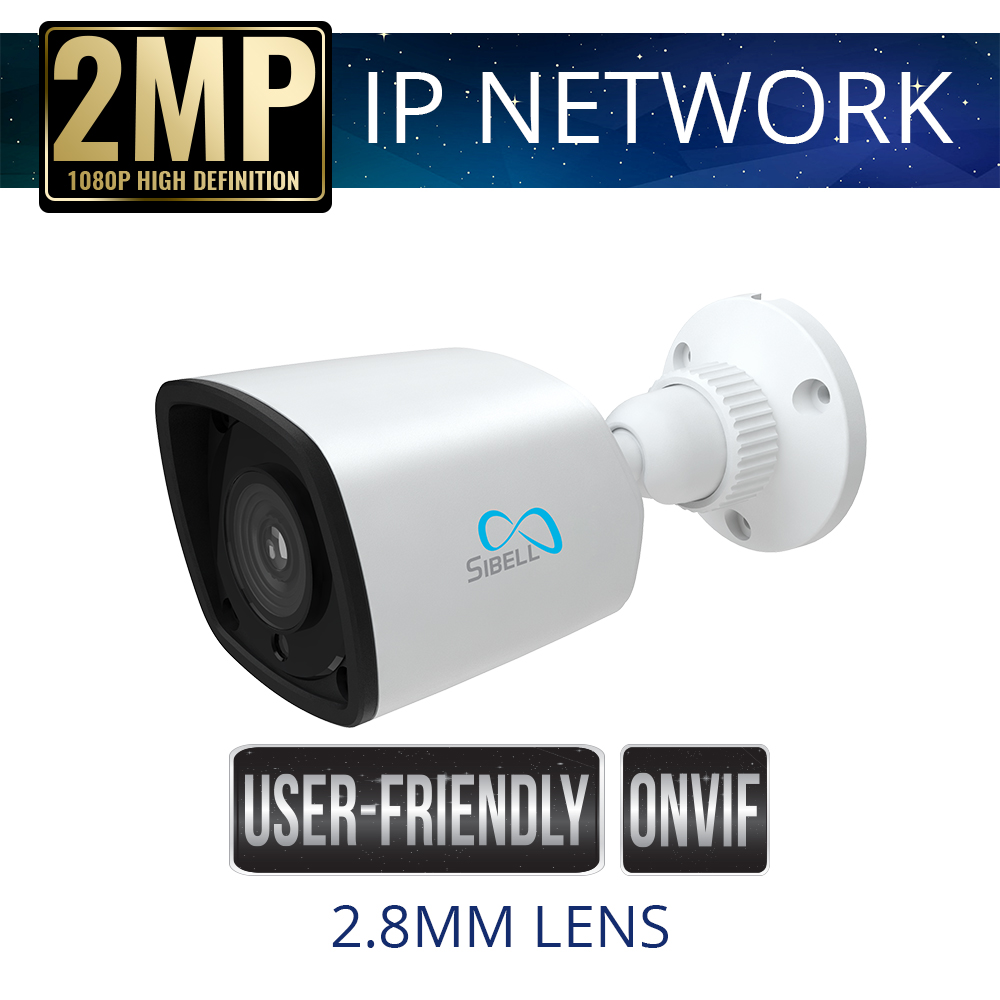

2.8mm 2mp Economy IP Bullet Camera Weatherproof with IR
Sibell’s IPOB-SB2IRE28 Economy IP Bullet Camera for video security provides 2 Mega-Pixel real-time 1080p resolutions at 30fps. The IPOB-SB2IRE28 is relatively compact and discrete and provides advanced features like 3D DNR Wide Dynamic Range (digital WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting. This IP Bullet Camera displays Night Vision IR distance from 65 – 82 Feet and is has Plug and Play POE Power supply. The Sibell IPOB-SB2IRE28 is IP66 Rated weatherproof for indoor or outdoor use. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms and work seamlessly with Sibell Recorders.
Key Features:
- 2 Mega Pixel 1080P ( 1920 x 1080 )
- Max. Resolution: 1920 x 1080
- 2.8mm Wide angle fixed lens
- ICR auto switch, true day / night
- 65 ~ 82 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding
- Supports local CVBS video output and one-way audio
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
Model#: IPOB-SB2IRE28 2mp Economy IP Bullet Camera Weatherproof with IR |
|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 130%0 x 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color: 0.002 lux @F1.2 AGC On; B/W: 0.0002 lux @F1.2,AGC On |
| Lens | 2.8 mm @ F1.6 Horizontal field of view: 107º |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.264 / MJPEG |
| H.264 Compression
Standard |
Baseline profile / Main Profile / High Profile |
| Resolution | 1080p ( 130%0 x 1080), 720p (1280 x 720 ), D1, CIF, 480 x 240 |
| Main Stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 128 Kbps ~ 6 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 65 ~ 82ft (20-30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 3W |
| IR Consumption ON | < 6W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ø 87 × 219 |
| Weight ( net ) | 583g |
Accessories
Compatible Camera Mounts Part Number: JB-SB-BR
