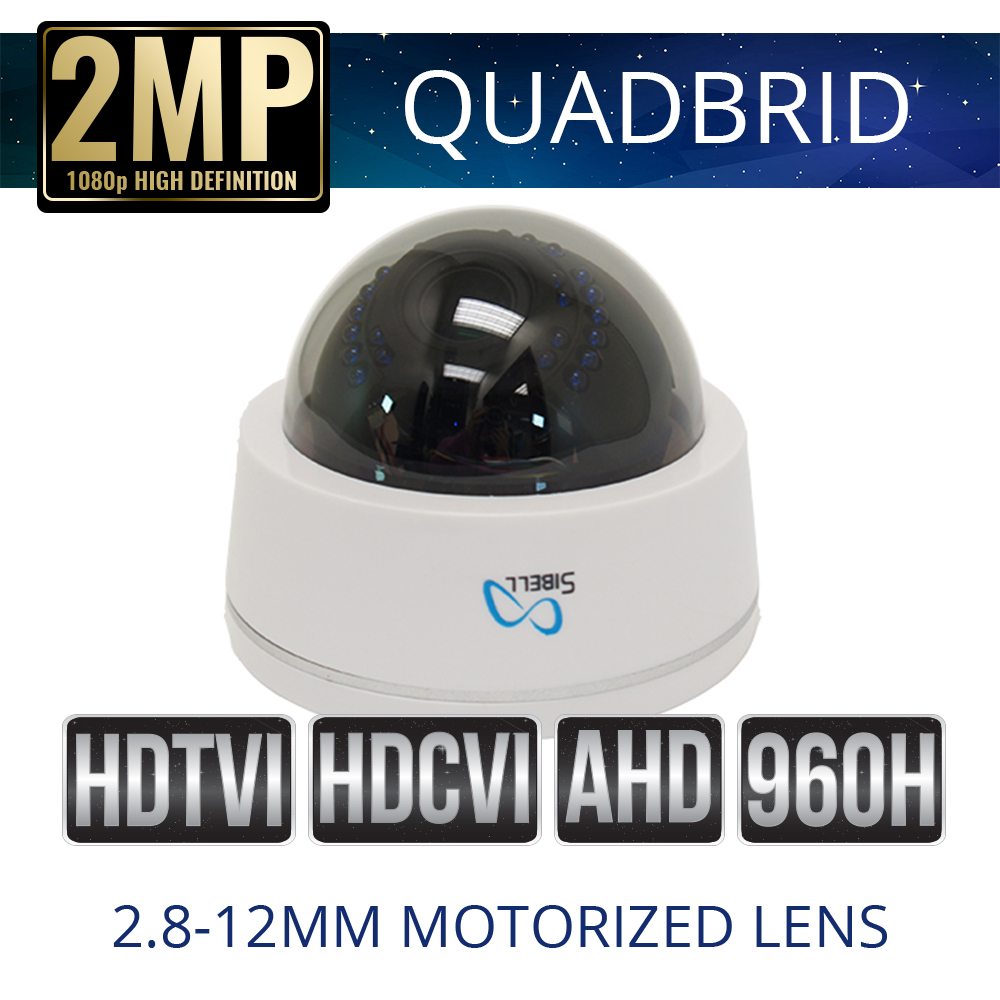

2mp Motorized Quad Indoor Dome HDID-SB2IRZW
2mp Motorized Quad Indoor Dome HDID-SB2IRZW is a versatile cross technology security camera with outputs for CVI, TVI, AHD and Analog. The HDID-SB2IRZW is a indoor only Sibell quad security camera and is a great HD over coaxial cable solution. This indoor dome has out puts for HD-CVI, HD-TVI, AHD or 960H and works with Sibell Quadbrid DVRs and with DVRs that accept anyone of the four technologies. The HDID-SB2IRZW dome will work in Light or dark conditions.
Key Features:
- 2 Mega Pixel 1080P ( 1920 x 1080 )
- Max. Resolution: 1920 x 1080
- 2.8-12mm Motorized Zoom
- 80 ~ 95 feet IR night view distance
- Quad High Definition Over Coaxial Cable
- HD-TVI, HD-CVI, AHD and Analog
- Day Night, White Balance
- 12vDC Power Supply
Description
2mp Motorized Zoom Quad Indoor Dome HDID-SB2IRZW |
|
| Camera | |
| Image Sensor | 1/3″ 2.4M Panasonic CMOS |
| Effective Pixels | 1944(H) X 1092(V) |
| Scanning System | Progressive |
| Sensor area | 7.6mmX5.8mm |
| Resolution | Digital:1920×1080p(1080p/30fps)
1280×720p(720p/60fps) Analog:700TVL |
| Day & Night | EXTERN,COLOR, B&W,AUTO |
| Minimum illumination | COLOR:0. 1Lux@(F2.0, AGC ON) B&W:0.01Lux@
(F2.0, AGC ON) |
| S/N ratio | >50dB(AGC Off) |
| White balance | AUTO |
| Lens | 2.8-12mm motorized zoom lens |
| Video output | CVI AHD TVI SELECTABLE by OSD |
| IR LED | 30PCS dot matrix IR LED (wavelength 850Mm) |
| IR distance | 25-30 M |
| Other | |
| Power Supply | DC 12V ±10% |
| Power Consumption | > 4.2 W |
| Operating Temperature | -10℃～+50℃, humitidy >90% |
Documents
Download “HDID-SB2IRZW Specsheets”
HDID-SB2IRZW-Specsheets.pdf – Downloaded 272 times – 2.01 MBDownload “HDID-SB2IRZW Manual”
HDID-SB2IRZW-Manual.pdf – Downloaded 281 times – 817.16 KBYou must be logged in to post a review.
