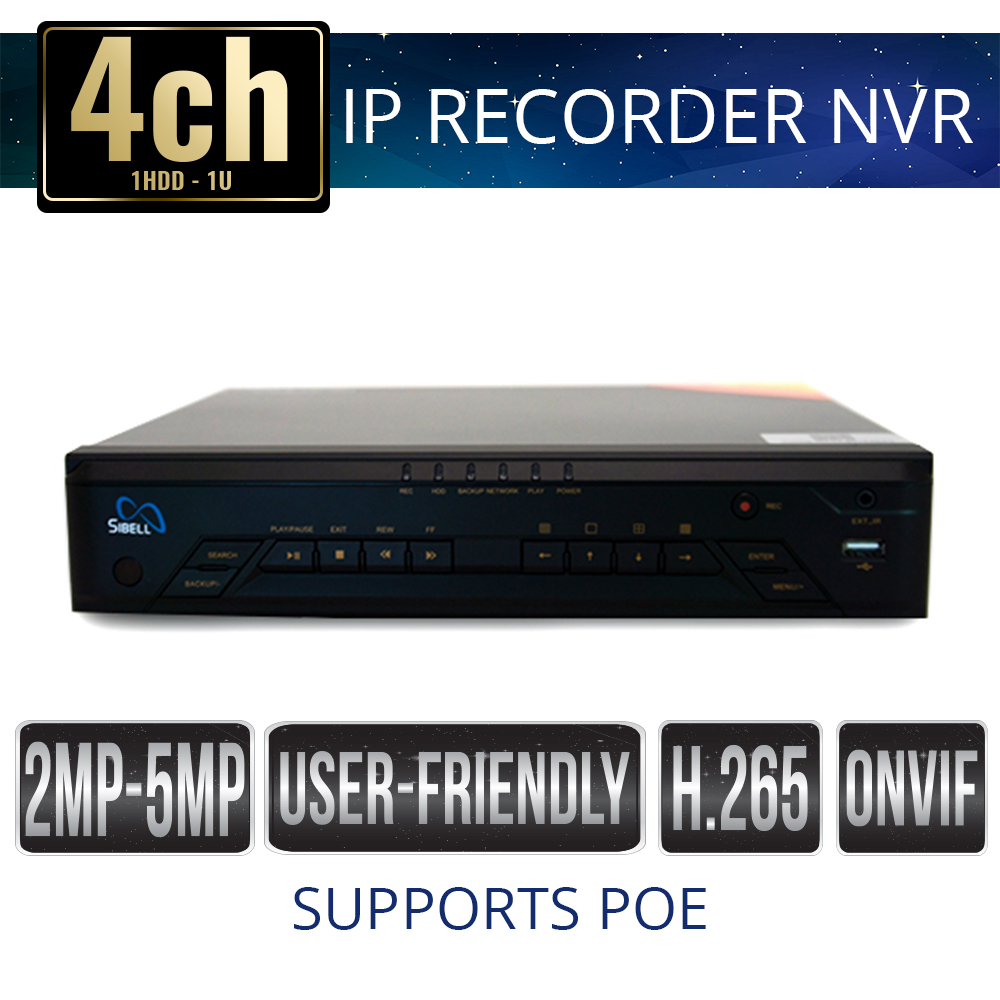

4ch Sibell NVR 1HDD with PoE
NVR-SB4ME-4P 4ch Sibell NVR 1HDD with PoE supports camera resolutions from 720p to 5 Mega Pixels. H.265 High profile compression available to help save you on hard drive space. This 4ch Sibell NVR 1HDD with POE can take a single hard drive up to 6TB. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 4 channel machine has POE to power compatible cameras and will also take ONVIF compatible devices.
Key Features:
- Support 4ch 1MP(720p) – 5MP Inputs
- H.265 high profile compression format
- Intuitive, user-friendly GUI with Modular Design
- Recording Modes in Manual, motion, sensor or timer
- Search video: by time, event, time slice, and tag search
- Express backup options
- Remote Monitoring via Browser or CMS
- Mobile Viewing Via Sibell Mobile App on IOS & Android
- NAT function & QRCode scan to set up mobile viewing
- 4 PoE ports for Direct Camera Connection & Power
- Dual Stream Technology
Description
Model#: NVR-SB4ME-4P 4ch Sibell NVR 1HDD with PoE |
||
| System | Compression | Standard H.265 |
| OS | Embedded Linux | |
| Video | Network Input | 4 CH IPC input |
| Bandwidth | 40Mbps | |
| Network Access Format
|
5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps
|
|
| Output | HDMI × 1: 4K x 2K/ 1920 x1080/1280 x1024
VGA x1: 1920×1080/ 1280 x 1024 |
|
| Audio | Network Input | 4 CH IPC audio input |
| 2-way Audio | RCA x 1 | |
| Local Output | RCA x 1 | |
| Record | Record Stream | Dual stream recording |
| Resolution | 5MP / 4MP / 3MP / 1080P / 960P / 720P | |
| Mode | Manual, timer, motion, sensor | |
| Playback | Simultaneous Playback | Max 4 CH |
| Search | Time slice / time / event / tag search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
|
|
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Alarm | Mode | Manual, sensor, motion, exception |
| Input | Support IPC alarm input | |
| Output | Support IPC alarm output | |
| Triggering | Record, Snap, Preset, e-mail, ect | |

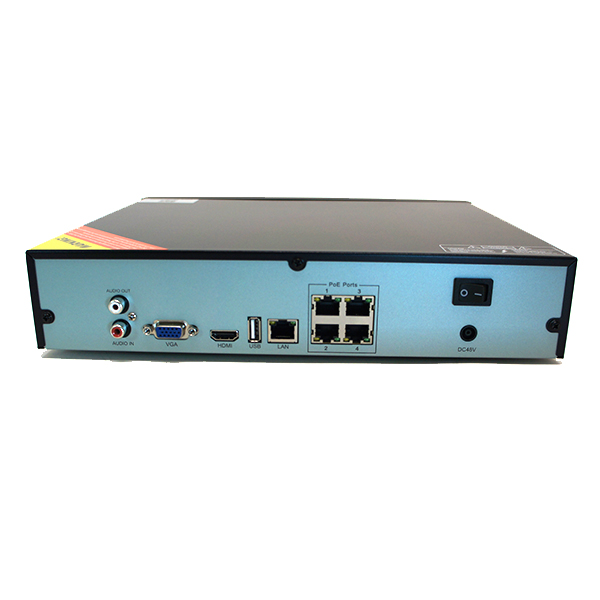

| Network | Interface | RJ45 10 / 100 Mbps × 1 |
| PoE Port | RJ45 × 4 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | |
| Web Client | Max 10 users online | |
| Mobile Device | OS | IOS, Android |
| Storage | HDD | SATA x1, 6TB Max per Hard Drive |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| Port | USB | USB 2.0 × 2 ( one in the front panel and the other in the rear panel ) |
| Remote Controller | Yes | |
| Others | Power Supply | DC48V |
| Consumption | ≤ 5W ( without HDD ) | |
| Dimensions | 12 × 11 × 2.2 ( W × D × H ) in | |
| Environment | -10 °C ~ 50 °C 10% ~ 90% humidity | |
Documents
Download “NVR-SB4ME-4P Specsheet”
NVR-SB4ME-4P-Specsheet.pdf – Downloaded 704 times – 254.58 KBDownload “NVR-SB4ME-4P Quick Start Guide”
NVR-SB4ME-4P-QSG.pdf – Downloaded 636 times – 1.04 MBDownload “Sibell NVR Manual”
Sibell-2016-NVR-manual.pdf – Downloaded 4966 times – 6.32 MBYou must be logged in to post a review.
