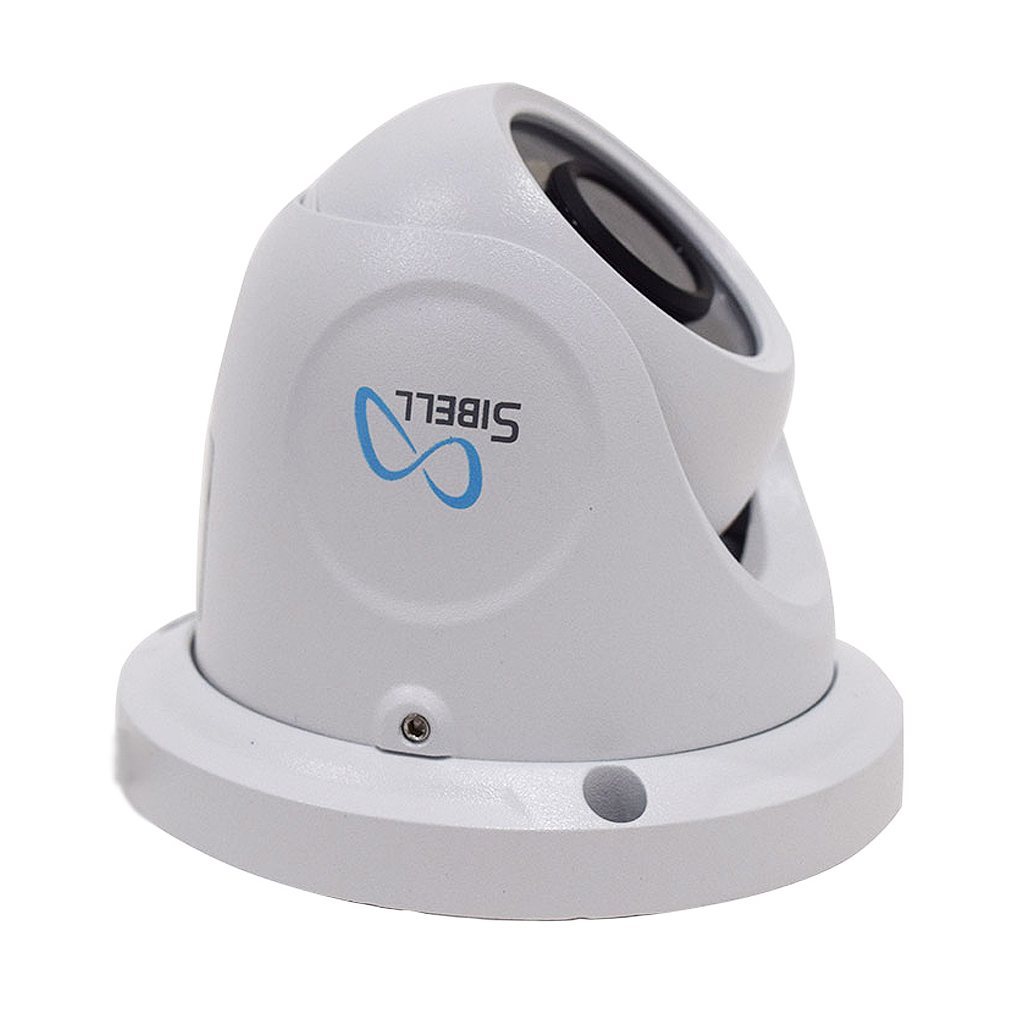

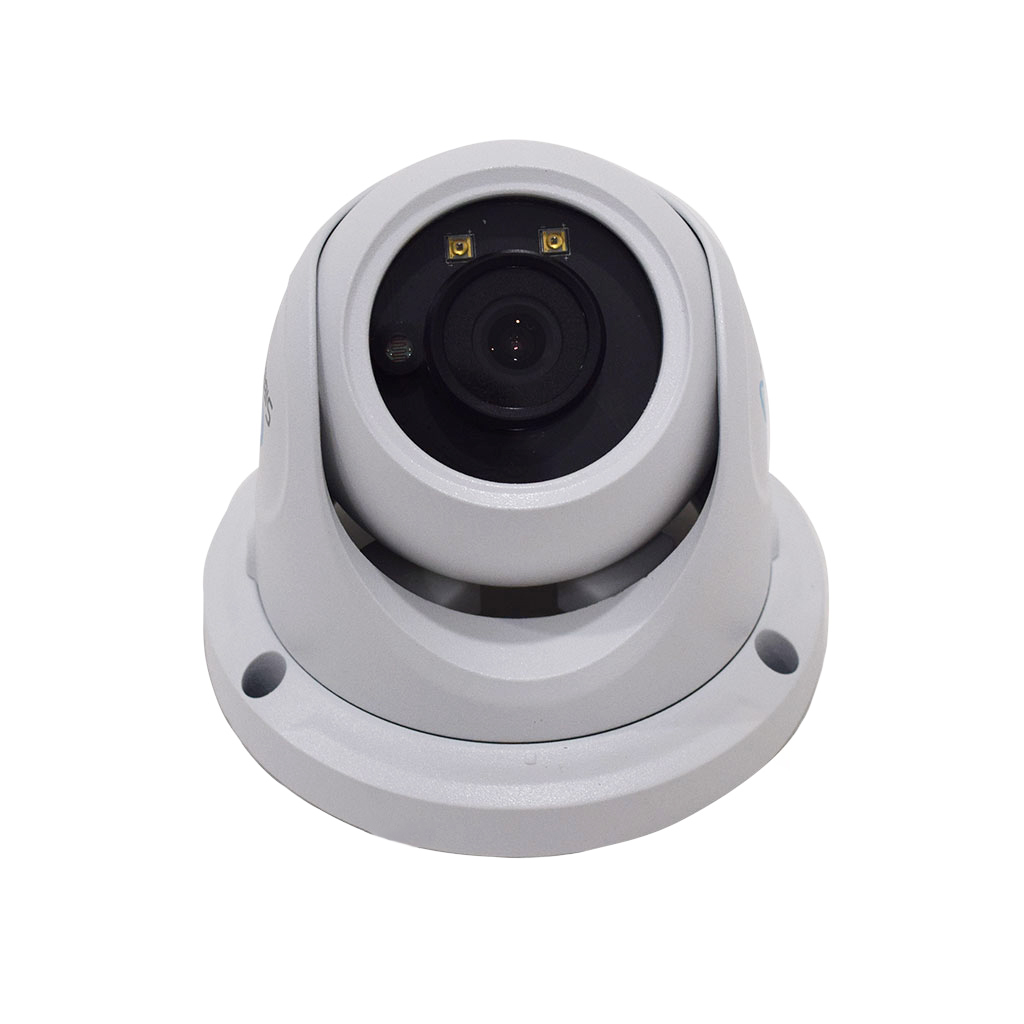

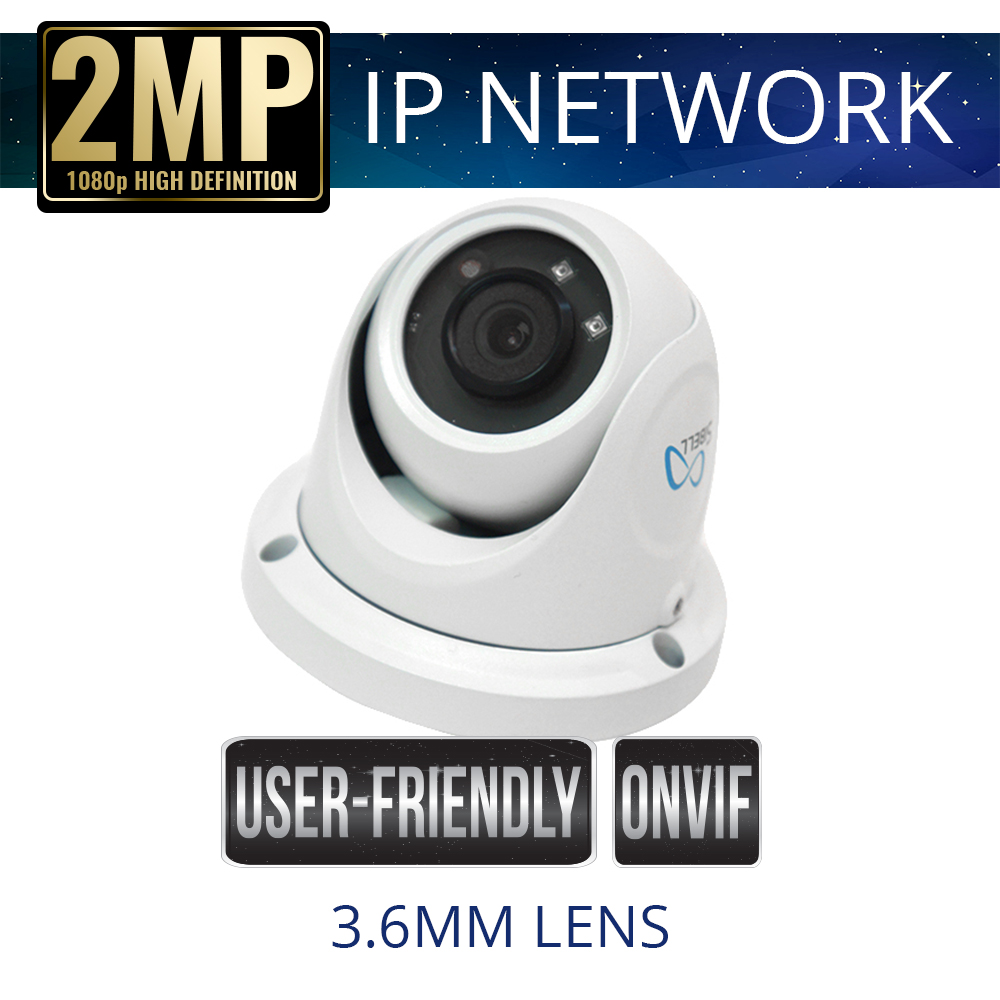

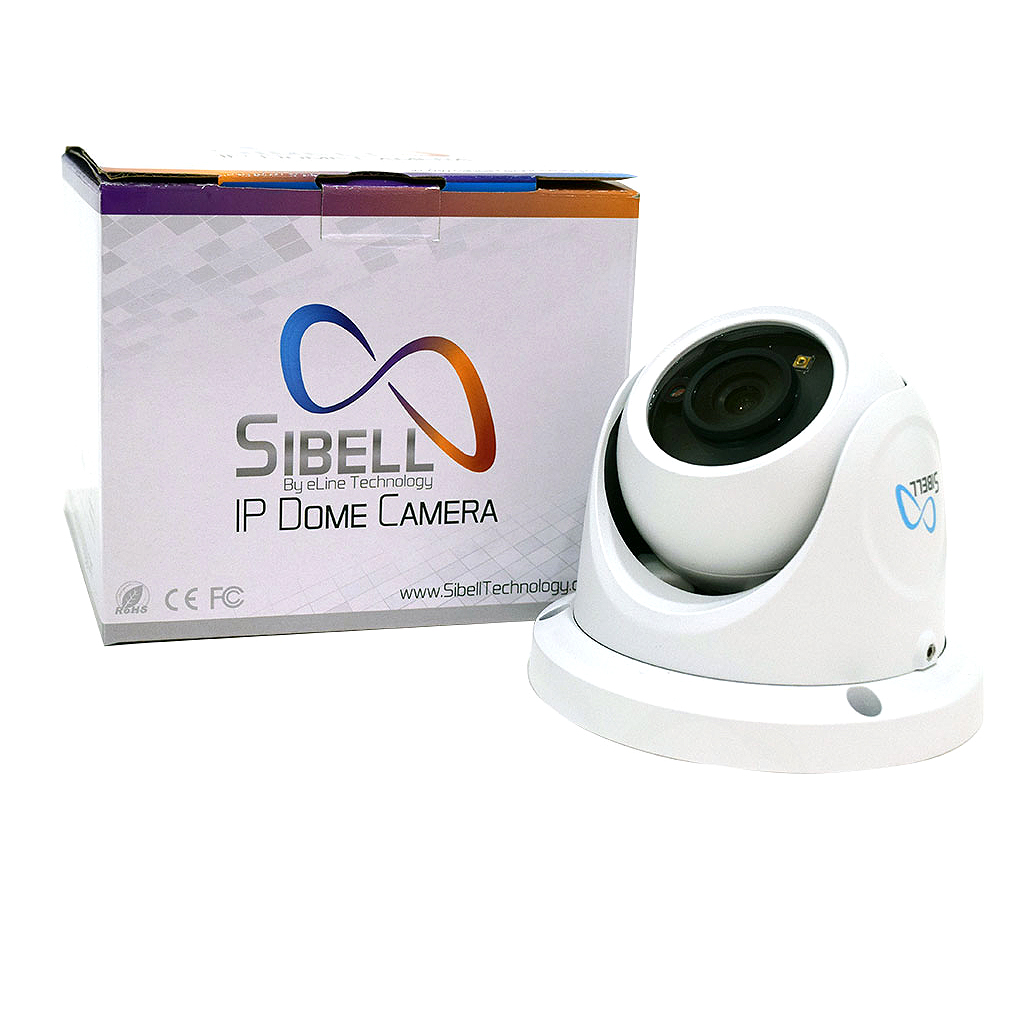

2mp IP Network Eyeball Dome Security Camera
Sibell’s IPOD-SB2IRE IP Network Eyeball Dome Security Camera Provides 2 Mega Pixel real-time 1080p resolutions at 30fps and provides a range of features including Digital WDR, 3D DNR , ICR auto switch and True Day/Night for a variety of lighting situations. This Sibell IP Network Eyeball Dome Security Camera Provides Night Vision IR distance up to 33 – 66 Feet. The IPOD-SB2IRE also supplies an easy plug and play POE Power supply and is IP66 Rated for indoor and outdoor environments. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms.
Key Features:
- 2 Mega Pixel 1080P ( 1920 x 1080 )
- Max. Resolution: 1920 x 1080
- ICR auto switch, true day / night
- 33 ~ 66 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
Model#: IPOD-SB2IRE 2mp IP Network Eyeball Dome |
|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 x 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Auto Iris | Fixed Iris |
| Min. Illumination | 0.1 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 3.6 mm @ F1.6, angle of view: 79° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.264 / MJPEG Baseline Profile / Main Profile / High Profile |
| Resolution | 1080P ( 1920×1080 ),720P ( 1280×720) D1,CIF(480×240) |
| Main stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 256Kbps ~ 5Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,
Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| ROI | 3 ROI |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users;
Support multi-stream real-time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 33-66ft (10~20m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2W |
| IR Consumption ON | < 4W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions | ø 3.5in × 4in (ø 87mm × 108mm) |
| Weight ( net ) | 369g (1lbs) |
| Installation | Wall mounting, pendent mounting |
Accessories
Compatible Camera MountsPart Number: JB-SB-BR
 |
Part Number: WB-SB-ED
 |
Documents
Download “IPOD-SB2IRE - Specsheet”
ipod-sb2ire-specsheet.pdf – Downloaded 215 times – 174.23 KBDownload “IPOD-SB2IRE- Quick Start Guide”
IPOD-SB2IRE-QSG.pdf – Downloaded 248 times – 1.37 MBDownload “IPOD-SB2IRE-Manual”
IPOD-SB2IRE-Manual.pdf – Downloaded 244 times – 1.89 MBYou must be logged in to post a review.
