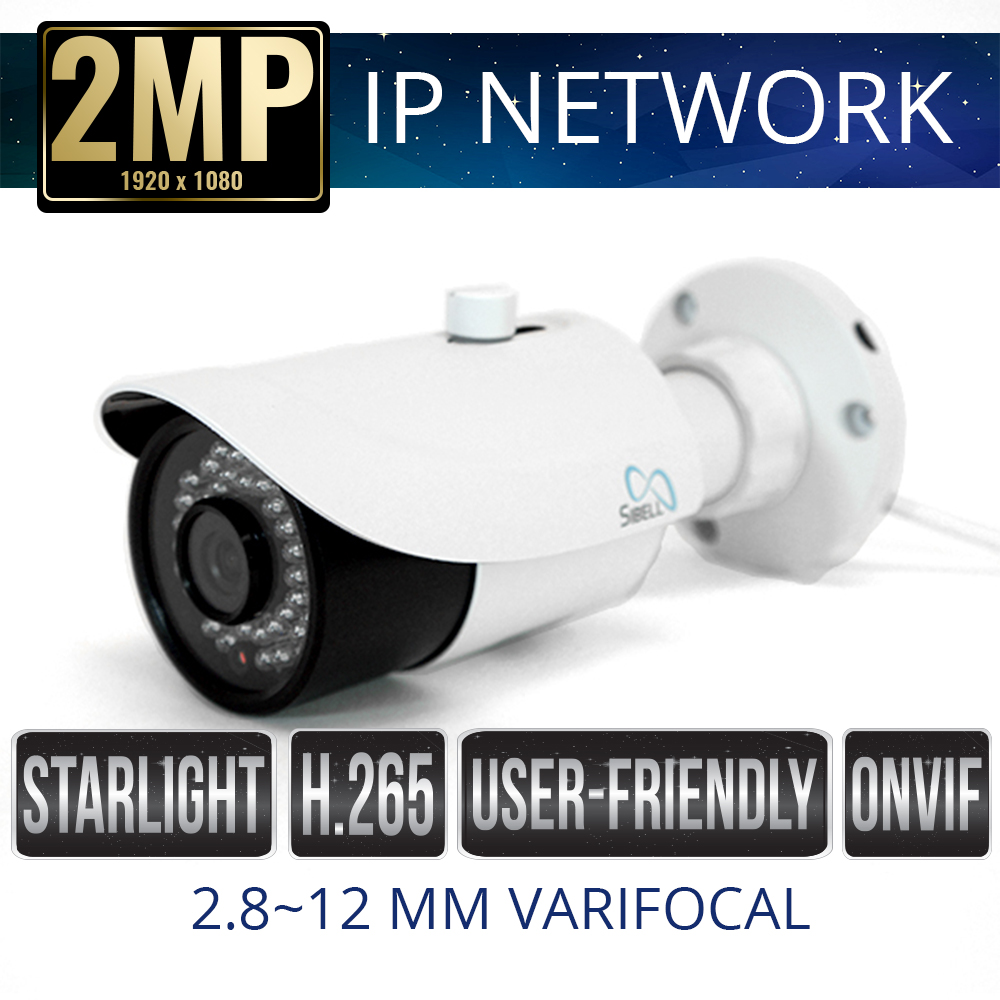

2mp IP Network Bullet Camera Weatherproof with IR
Sibell IPOB-SBS2IRV 2mp IP Bullet Camera for video security provides 2 Mega-Pixel real-time resolutions at 30fps. This 2mp IP Bullet Camera provides a feature set including ICR auto switch, true day / night, 3D DNR, and Digital Wide Dynamic Range. The Lens is manual varifocal 2.8-12mm adjustable zoom. The Sibell IPOB-SBS2IRV is IP66 Rated weatherproof for indoor or outdoor use and all Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms. Sibell IP Cameras work seamlessly with Sibell Recorders.
Key Features:
- 2 Mega Pixel ( 1920 x 1080 )
- H.264 video encoding
- 2.8-12mm varifocal lens
- ICR auto switch, true day / night
- 65 ~ 82 feet IR night view distance
- 3D DNR, digital WDR
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
Description
Model#: IPOB-SBS2IRV 2mp IP Network Bullet Camera Weatherproof with IR |
|
| Camera | |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 130%0 x 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color : 0.002 lux @F1.2,AGC ON;
B / W : 0.0002 lux @F1.2,AGC ON |
| Lens | 2.8~12 mm @ F1.4-2.8, horizontal field of view :95.7° |
| Lens Mount | ɸ 14 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.264 / MJPEG |
| H.264 Compression
Standard |
Baseline Profile / Main Profile / High Profile |
| Resolution | 1080P ( 130%0 x 1080 ), 720P ( 1280 x 720 ), D1, CIF, 480 x 240 |
| Main Stream | 60Hz : 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps )
50Hz : 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit rate | 128Kbps ~ 6Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users ;
Support multi-stream real time transmission |
| Protocol | TCP/IP, UDP, DHCP, N Network Protocol TP, RTSP, DDNS, SMTP,FT |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| Smart Analysis | Video exception, line crossing, intrusion, etc. |
| PoE | Yes |
| IR Distance | 65 ~ 82ft (20-30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 3W |
| IR Consumption ON | < 6W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ø 87 × 219 |
| Weight ( net ) | 583g |
Accessories
Compatible Camera Mounts Part Number: JB-SB-BR
Documents
Download “IPOB-SBS2IRV-Specsheet”
IPOB-SBS2IRV-Specsheet.pdf – Downloaded 411 times – 213.16 KBYou must be logged in to post a review.
