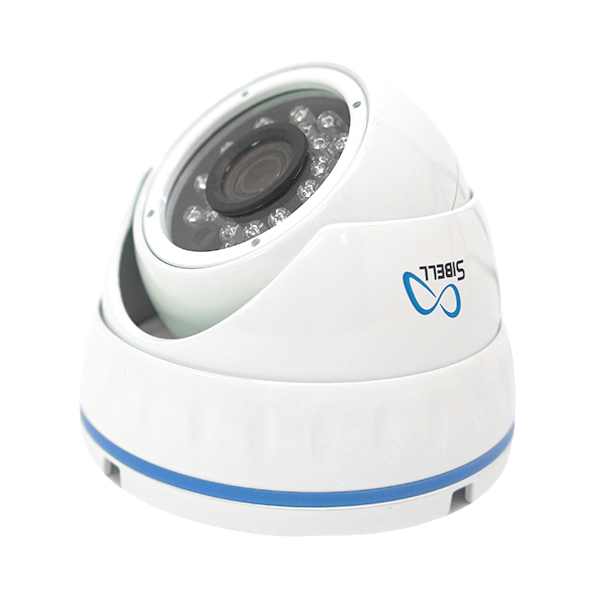

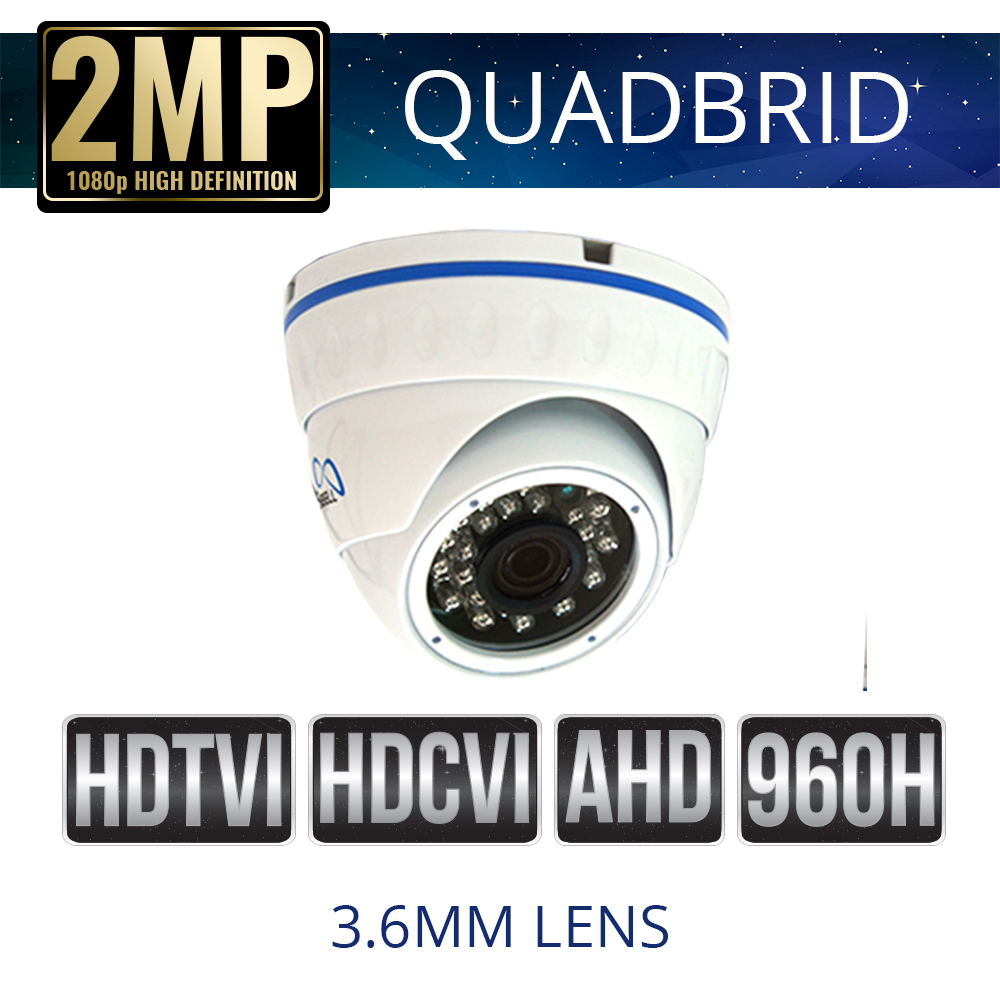

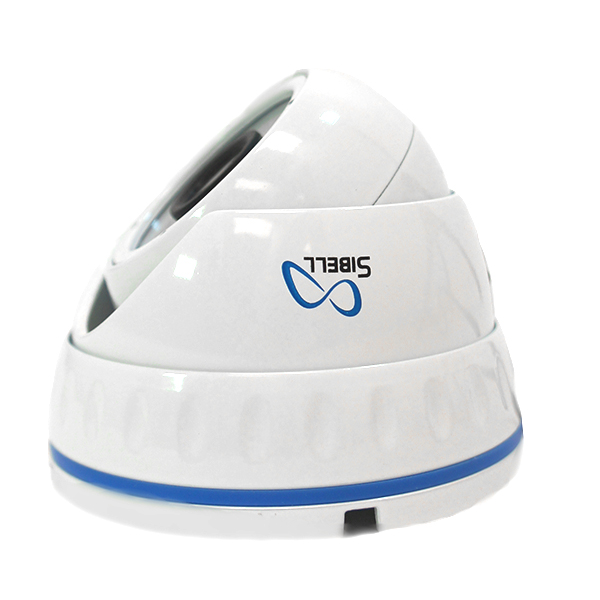

2MP TVI/AHD/CVI/Analog Fixed Dome Camera Weatherproof with IR
HDOD-SB2IRW 2MP TVI/AHD/CVI/Analog Fixed Dome Camera Weatherproof with IR is a plug and play solution High definition Over coaxial cable or can be a traditional analog camera solution. 2 Mega Pixel 1080p video, 3.6mm fixed lens to capture a wide area view. Night vision distance up to 65 feet. 2D DNR Wide Dynamic Range (digital WDR) and True Day/Night to deliver quality imagery in any type of lighting environment. IP66 Rated weatherproof, wonderful for outdoor use.
Key Features:
- 2 Mega Pixel (1920×1080)
- 3.6mm Fixed Lens
- 65 feet of IR night view distance
- TVI, AHD, CVI, & Analog Outputs
- Day Night, White Balance, 2DNR, DWDR
- 12vDC Power Supply
Description
Model#: HDOD-SB2IRW 2MP TVI/AHD/CVI/Analog Fixed Dome Camera Weatherproof with IR |
|
| Camera | |
| Image Sensor | NTSC 1/2.9 SONY 2.4MP CMOS Sensor |
| Image Resolution | 1080P/960H |
| Effective Pixels | 2.4MP, 1920×1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s |
| S/N Ratio | ≥50dB |
| Scanning System | Progressive Scan |
| Lens | 3.6mm/F2.0 fixed |
| Infrared LED | 14µ x 18PCS |
| Infrared Distance | 65 feet (20M) |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Functions | |
| Day/Night | Auto (ICR) / Color / B&W |
| OSD Menu | Yes |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 2DNR |
| WDR | DWDR |
| UTC | Yes |
| Other | |
| Power Supply | DC 12V ±10%, 500mA |
| Operating Environment | – 10 °C ~ 50 °C (95 % humidity Max) |
| Dimensions ( in ) | 3.7(W) x 2.7(H)in |
| Weight | 450g |
Documents
Download “HDOD-SB2IRW Specsheet”
HDOD-SB2IRW-Specsheets.pdf – Downloaded 532 times – 214.74 KBDownload “Sibell HDOD Quadbrid Camera Manual”
Sibell-Quadbrid.pdf – Downloaded 528 times – 270.53 KBYou must be logged in to post a review.
