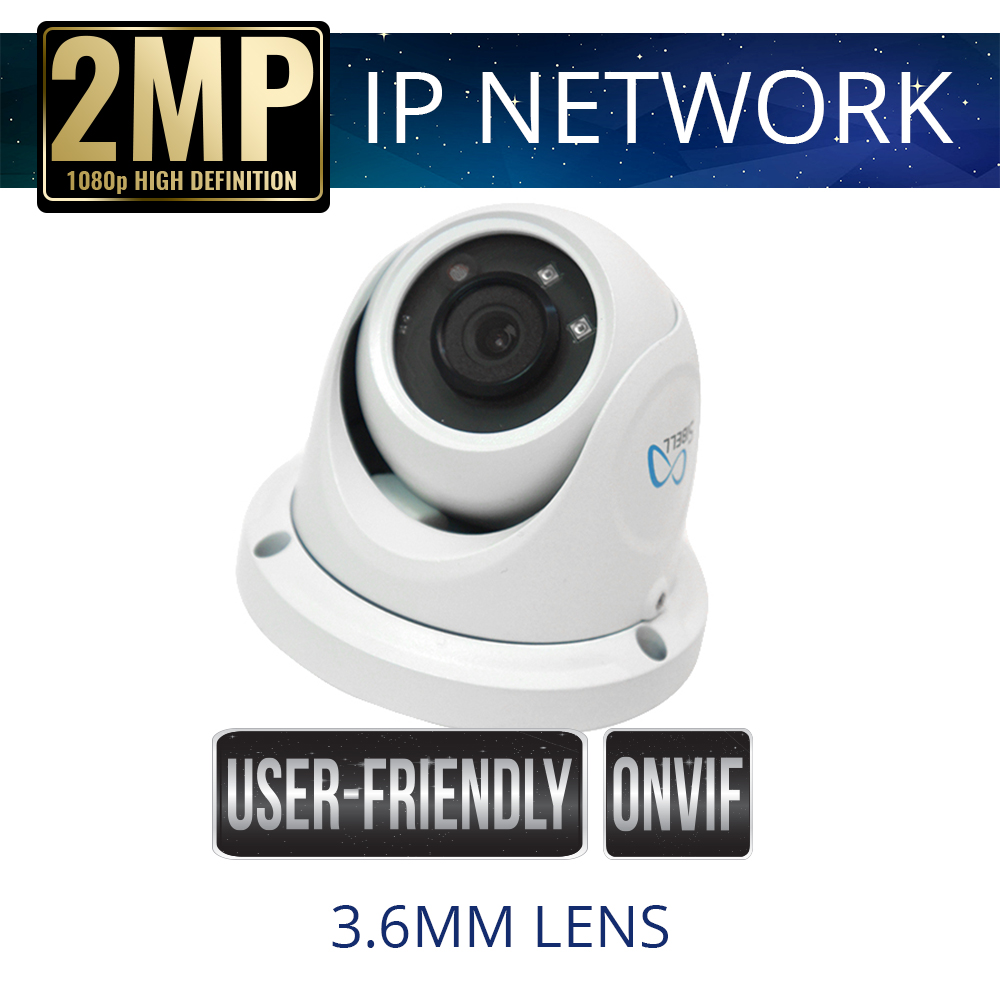

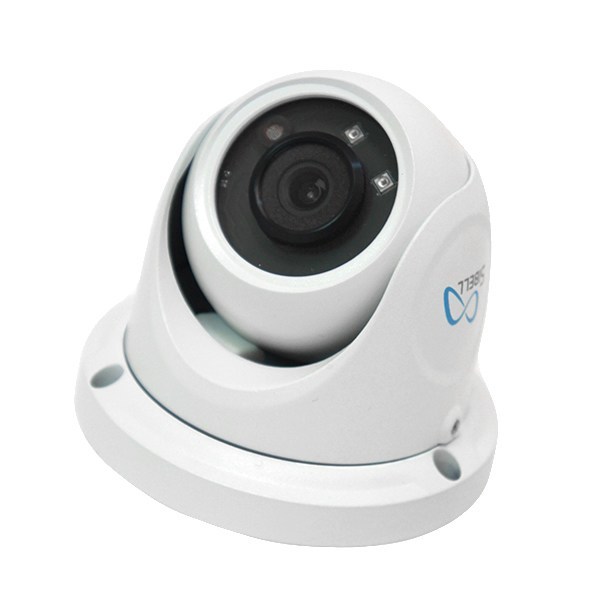

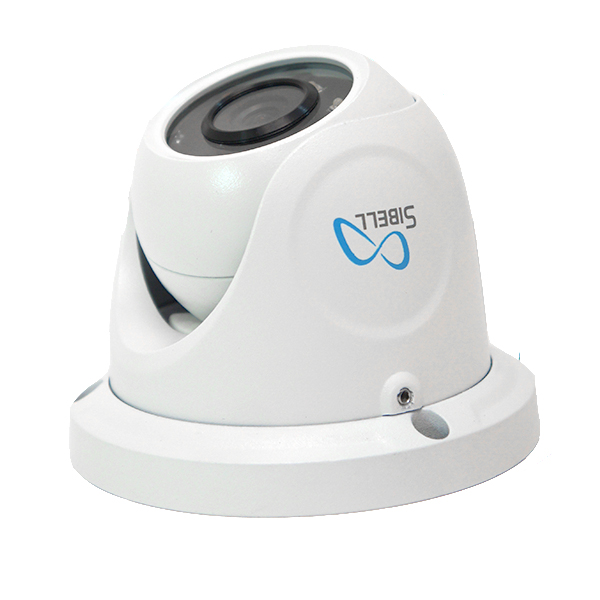

2mp IP Network Eyeball Dome Weatherproof with IR
Sibell IPOD-SB2IR IP Network Eyeball Dome Security Camera Provides 2 Mega Pixel real-time 108op resolutions at 30fps. 3D DNR Wide Dynamic Range (digital WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. Night Vision IR distance up to 32 – 65 Feet. POE Power supply and IP66 Rated. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms.
Key Features:
- 2 Mega Pixel 1080P ( 1920 x 1080 )
- Max. Resolution: 1920 x 1080
- ICR auto switch, true day / night
- 32 ~ 65 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding

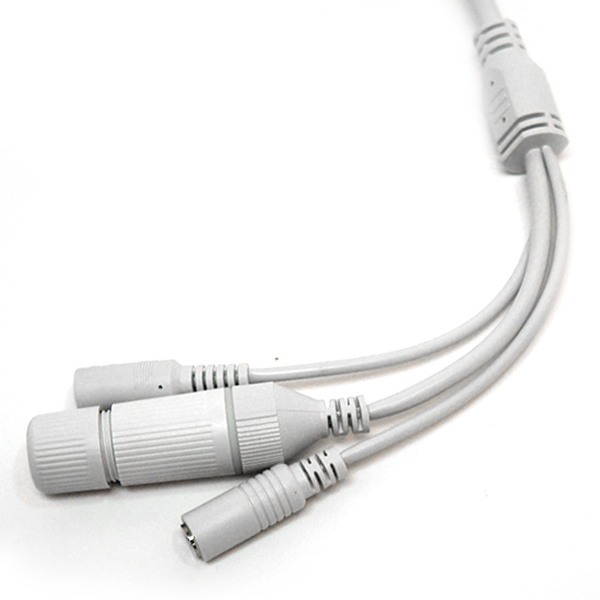

- Supports local CVBS video output and one-way audio
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
Model#: IPOD-SB2IR 2mp IP Network Eyeball Dome |
|
| Camera | |
| Image Sensor | 1 / 2.7 “CMOS |
| Image Size | 1920 x 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Min. Illumination | 0.05 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 3.6mm Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.264 / MJPEG |
| Resolution | 1080P ( 1920×1080 ),720P ( 1280×720) D1,CIF(480×240) |
| Main stream | 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 64 Kbps ~ 8 Mbps |
| Encode Mode | VBR / CBR |
| ROI | 8 ROI |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,
Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| Interfaces | |
| Network | RJ45 |
| Audio | One-way audio (MIC IN × 1) |
| Video Output | CVBS video output ( BNC × 1 ) |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users;
Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T/ 28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 32-65ft (10~20m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2W |
| IR Consumption ON | < 4.5W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ø 87 × 108 |
| Weight ( net ) | 325g |
Accessories
Compatible Camera MountsPart Number: JB-SB-BR
 |
Part Number: WB-SB-ED
 |
Documents
Download “IPOD-SB2IR Specsheet.pdf”
IPOD-SB2IR-Specsheet.pdf – Downloaded 571 times – 561.64 KBDownload “IPOD-SB2IR Quick Start Guide”
IPOD-SB2IR-QSG.pdf – Downloaded 504 times – 1.24 MBDownload “Sibell 2MP IP Camera Manual”
Sibell-2MP-usermanual.pdf – Downloaded 646 times – 2.01 MBYou must be logged in to post a review.
